How to specify the Ray Work Chair
Choose the seat and back

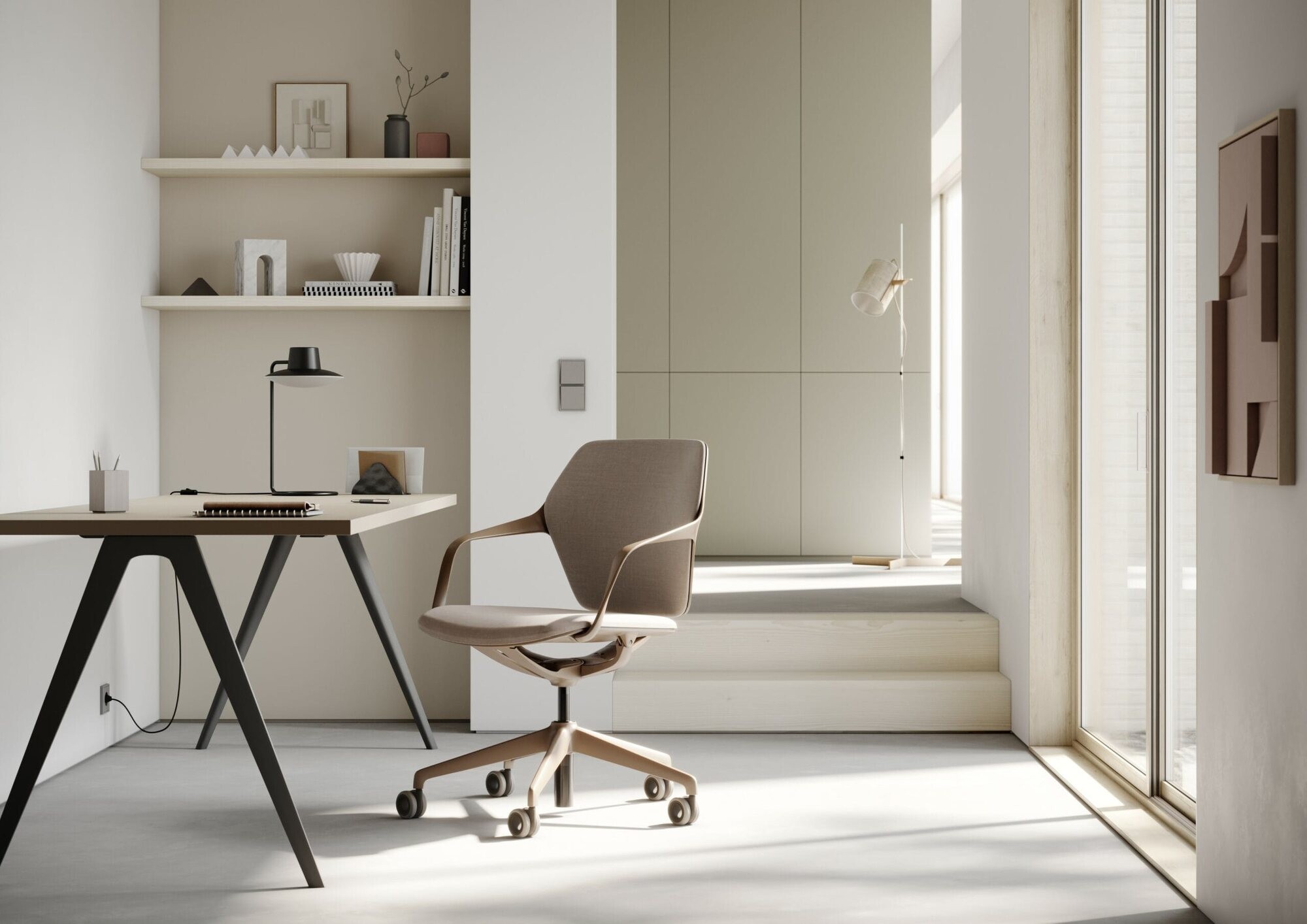

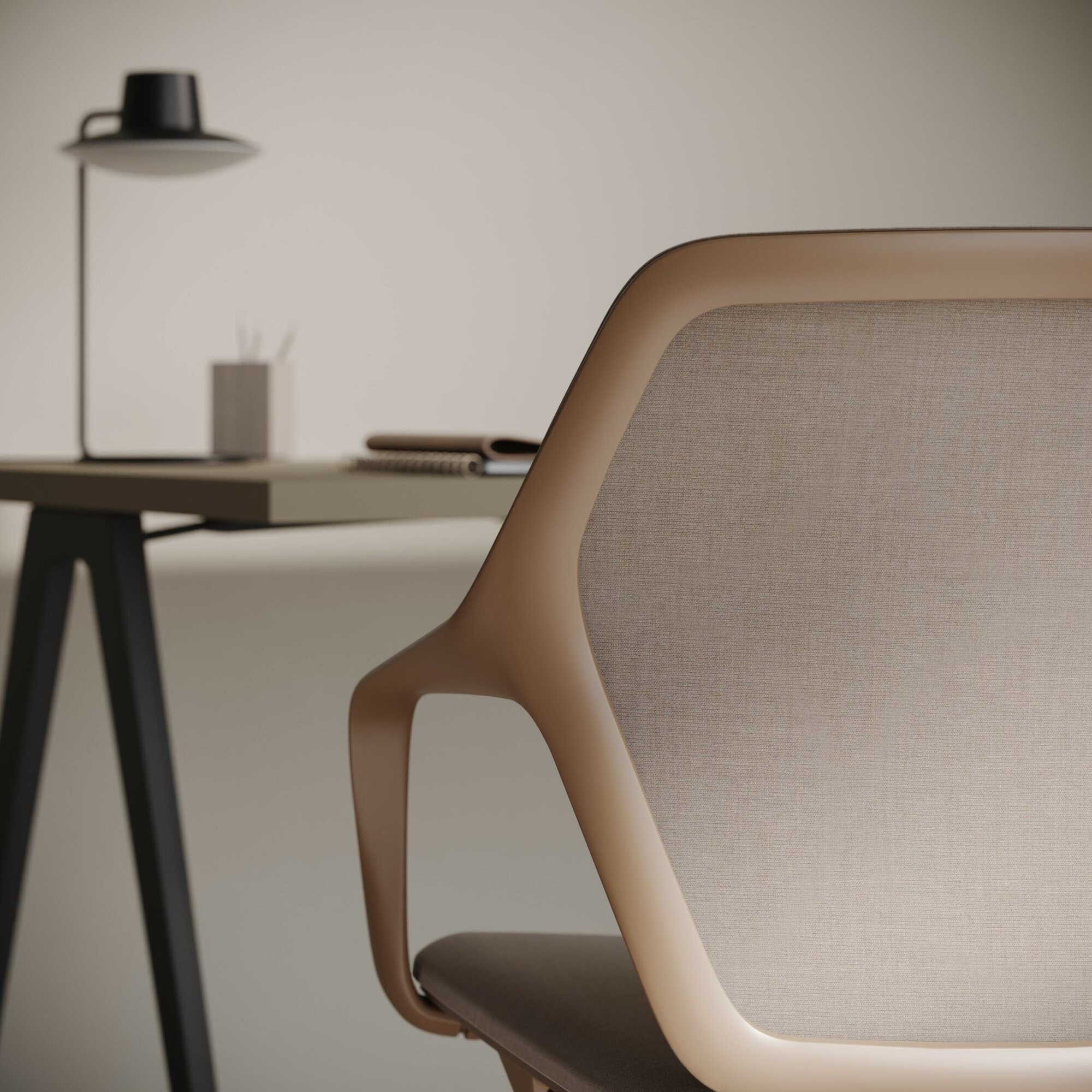

Model 9220 uses mesh on both the seat and back. Model 9223 combines an upholstered seat with a mesh back. Model 9225 has an upholstered seat and back. Wave quilting is an option on the 9223 seat and on both upholstered parts of the 9225.
Plan for shared or assigned use

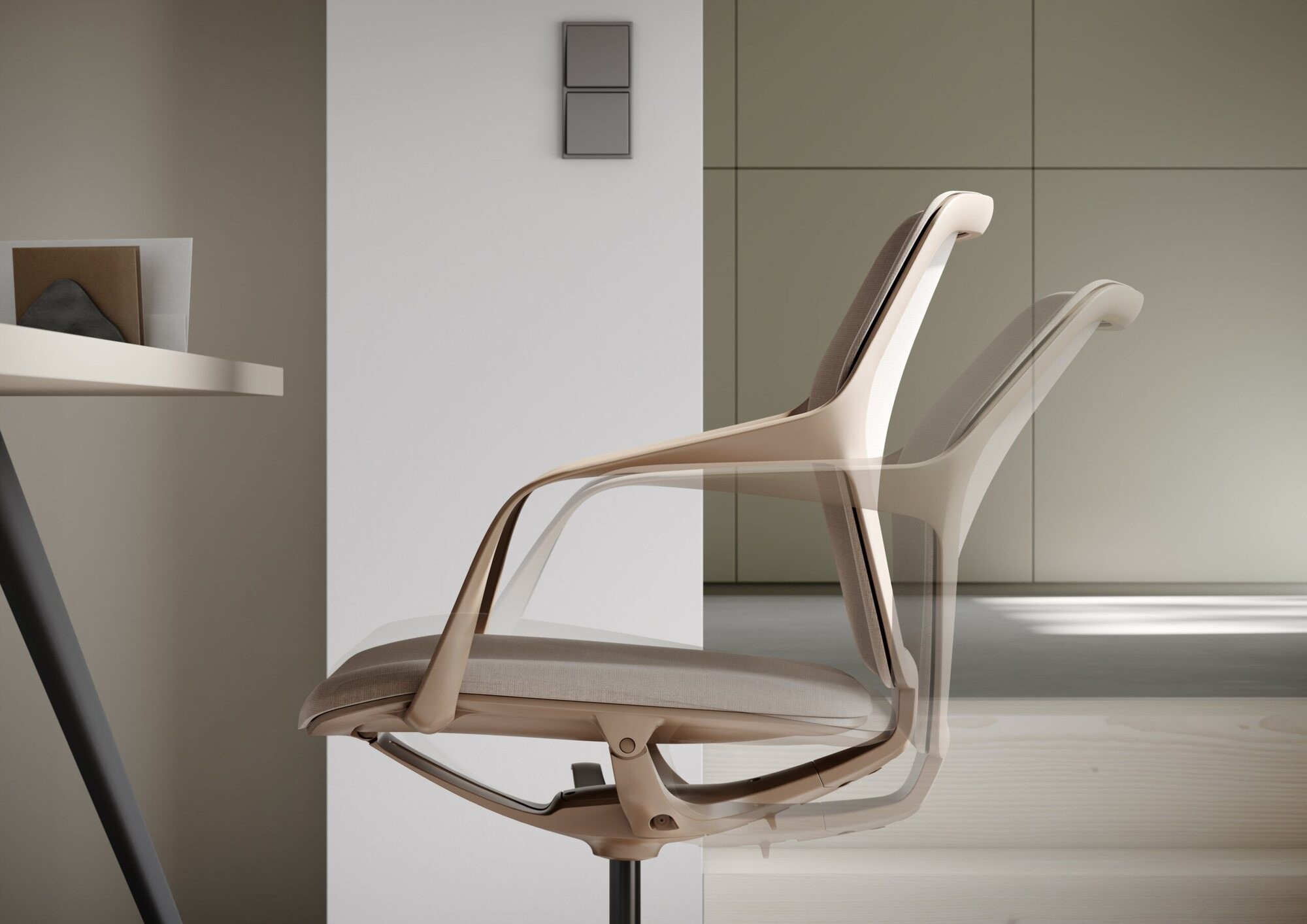

All three models use a synchronous mechanism with automatic weight adjustment, seat-height adjustment and an upright locking position. The frame and mechanism respond as the user reclines. This reduces the number of adjustments needed when different people use the same chair, but users should still set the seat height for their workstation.
Check the space
Every version is 675 mm wide and 650 mm deep. Overall height adjusts from 835 to 935 mm, with a seat-height range of 420 to 520 mm. Allow room behind the chair for reclining and movement, and check desk clearance around the integrated armrests.
Match the base to the floor
Hard-tread castors for carpet are standard. Soft-tread castors are available for hard flooring. Plastic or felt QuickClick gliders can be specified where a fixed position suits the room. Automatic return requires gliders and a fixed seat height.
Select colours and upholstery
The plastic frame is available in six colours. Mesh versions offer seven mesh colours, with matching rules for some frame and mesh combinations. Models 9223 and 9225 can use fabric, leather or artificial leather from Brunner's range. Confirm the selected cover's required performance before approval.
Complete the project brief
Record the model, quantity, floor type, frame and mesh colours, upholstery, quilting choice and delivery location. One of our experienced project consultants can then check the proposed configuration and prepare a project quotation.
Frequently asked questions
What is the difference between Ray Work 9220, 9223 and 9225?
The 9220 has a mesh seat and back. The 9223 has an upholstered seat with a mesh back. The 9225 has an upholstered seat and back. Optional wave quilting applies to the 9223 seat and to the 9225 seat and back.
How does the Ray Work Chair adjust to different users?
All three models use a synchronous mechanism with integrated automatic weight adjustment. The seat and back respond together as the user reclines, while seat height adjusts from 420 to 520 mm. The mechanism can lock in its upright zero position.
What are the Ray Work Chair dimensions?
Each model is 675 mm wide and 650 mm deep. Overall height adjusts from 835 to 935 mm, and seat height adjusts from 420 to 520 mm.
Which castors or gliders can I choose?
Hard-tread castors for carpet are standard. Soft-tread castors for hard floors are optional, as are plastic or felt QuickClick gliders. Automatic return is available only with gliders and a fixed seat height.
Which colours and upholstery are available?
The plastic frame comes in six colours. Mesh versions offer seven mesh colours, with rules for matching the mesh and frame. Models 9223 and 9225 can use fabric, leather or artificial leather from Brunner's range. The selected cover and its required performance should be confirmed as part of the specification.
Does the Ray Work Chair use recycled material?
Brunner states that the lava-coloured plastic frame and base use recycled plastic. This claim does not apply to every colour. Brunner's environmental information reports at least 99% recyclability, subject to its stated calculation limits and local recycling arrangements.
